Application

This class represents an AWS CDK application. It allows the user to create a new CDK App instance and a main CDK Stack instance.

Constructor#

Parameters#

  • config (optional): An object that implements the IApplicationConfig interface. This object is used to configure the application. If no config object is provided, an empty object is used.

Details#

  • The constructor initializes the AWS CDK application by creating a new App instance.
  • It also creates a new CDK Stack instance for the main stack using the provided config object.
  • The constructor hydrates the config object with environment variables using the Helper class.
  • It sets global variables mainStack using the Reflect class.

Properties#

  • app: An instance of the CDK App class representing the application.
  • mainStack: An instance of the CDK Stack class representing the main stack of the application.

Methods#

use(stack: any): Application#

This method is used to add a new stack to the application.

Parameters#

  • stack: An object representing the stack to be added to the application.

Returns#

  • An instance of the Application class with the new stack added.

Details#

  • The use method takes a stack object and calls its construct method passing in the config object.
  • This method allows the user to add different stacks to the application and configure them as needed.

example#

import { APIConstruct, Application, DynamoDBConstruct } from "@ten24group/fw24";import { AuthModule } from '@ten24group/fw24-auth-cognito';import { Duration, RemovalPolicy } from 'aws-cdk-lib';import { AttributeType } from 'aws-cdk-lib/aws-dynamodb';
const app = new Application({    functionProps: {        bundling: {            externalModules: ['@aws-sdk'],        },    },});
var api = new APIConstruct({    apiOptions: {        description: 'Sample App API Gateway',        deployOptions: {            stageName: 'v1',        },    },    functionProps: {        timeout: Duration.seconds(15),    },});
const dynamo = new DynamoDBConstruct({    table: {        name: 'users_tbl',        props: {            partitionKey: {                name: 'pk',                type: AttributeType.STRING,            },            sortKey: {                name: 'sk',                type: AttributeType.STRING,            },        },    },});
const authModule = new AuthModule({    userPool: {        props: {            selfSignUpEnabled: true,            removalPolicy: RemovalPolicy.DESTROY,        }    },    groups: [        {            name: 'admin',            routes: ['auth/addUserToGroup', 'auth/removeUserFromGroup'],        },        {            name: 'user',            autoUserSignup: true,        },    ],    useAsDefaultAuthorizer: false});
app.use(api).use(dynamo).useModule(authModule).run();

This sample app creates an API gateway, adds a dynamoDB table and add supports for Authentication for 2 user groups admin and user using the AuthModule.

Backend DIR structure#

FW24 prefers conventions over configurations and follows a very intuitive directory structure.

├── README.md├── cdk.json├── docs -- CLI generated API docs│   └── api│       ├── postman-xxx.json│       └── swagger-xxx.json├── gen -- auto-generated configs used by the framework internally│   └── config│       ├── auth.json│       ├── entities.json│       └── menu.json│       └── dashboard.json├── package-lock.json├── package.json├── src│   ├── controllers│   │   ├── book.ts│   │   ├── helloworld.ts│   │   └── test.ts│   ├── db│   │   └── myproject2.dynamo.client.ts│   ├── entities│   │   └── book.ts│   ├── functions│   │   └── bucket1handler.ts│   ├── modules -- this is where your application specific modules live│   ├── policies│   │   └── mypolicy.ts│   ├── queues│   │   └── myqueue.ts│   ├── services│   │   └── book.ts│   ├── tasks│   │   └── mytask.ts│   └── templates -- this's where your email templates live│   ├── index.ts // this is where the application code lives└── tsconfig.json

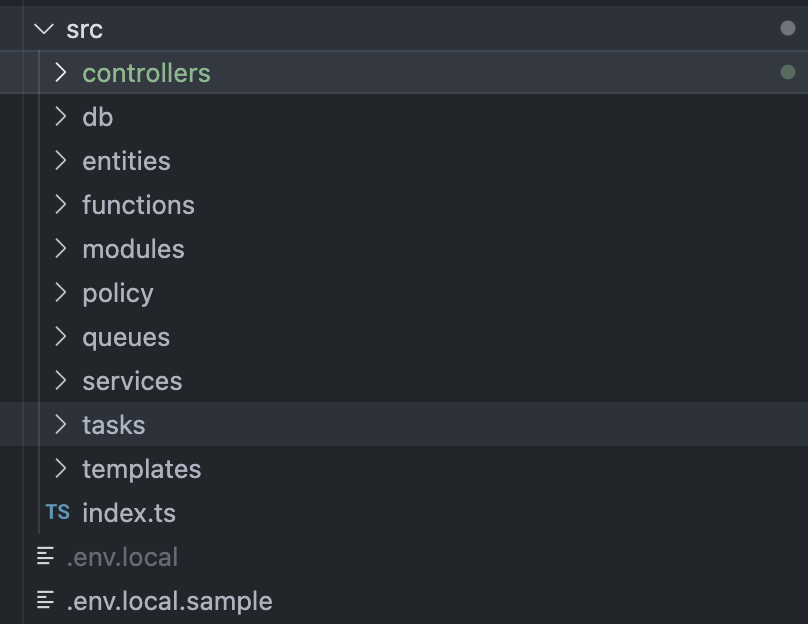

Fw24 backend app DIR structure
